Description

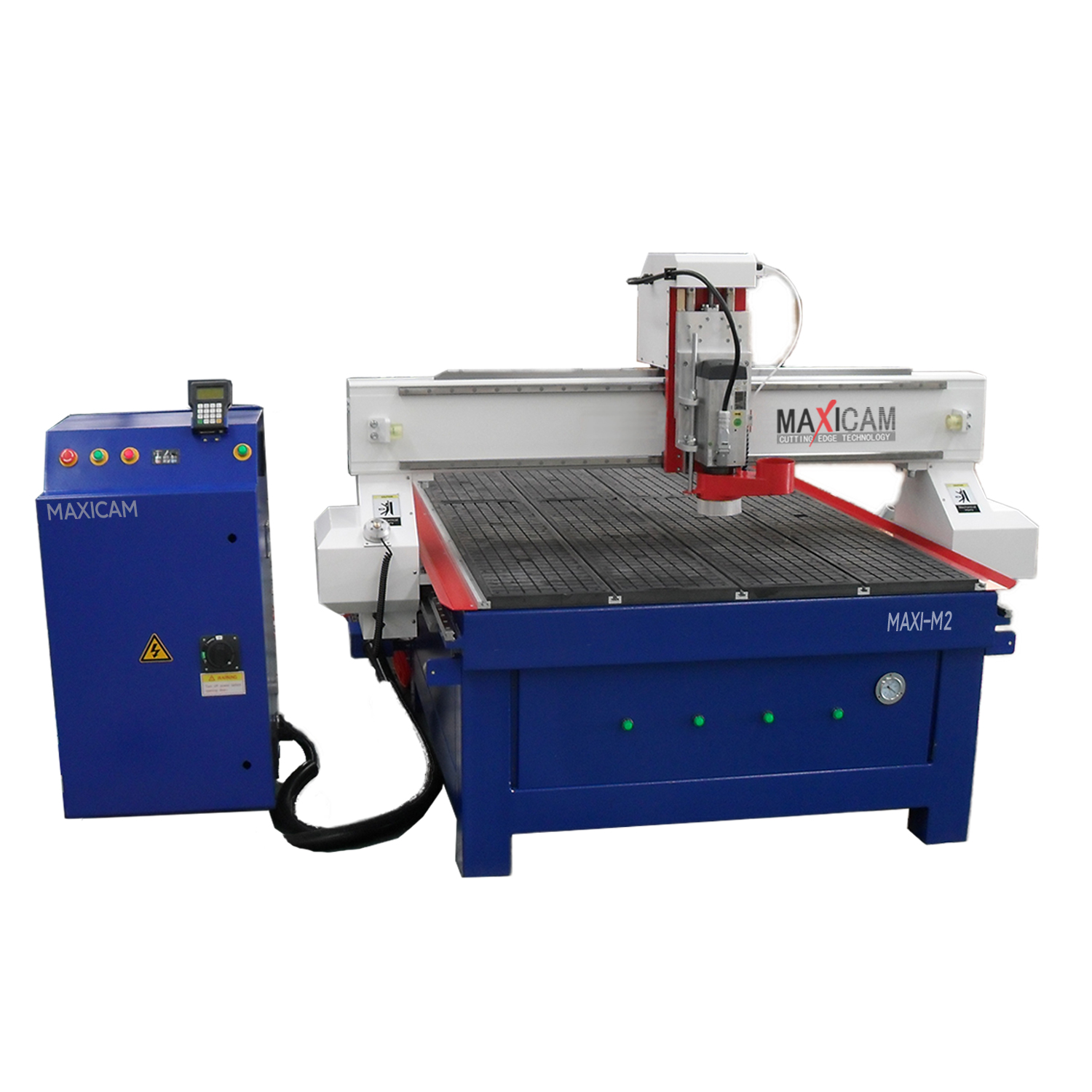

MAXI-M2 1325 CNC Router CNC Wood Router is also called CNC engraving machine in the CNC machine industry. It refers to the ability of the CNC machine to perform movement about three different axis like X, Y, Z axis simultaneously. This type of wood CNC machine is designed and typeset by special engraving software, and the design and typesetting information is automatically transferred to the controller by the computer, and the controller controls the engraving machine to generate the X, Y, and Z axis engraving paths to complete processing of the materials fixed on the working table, so as to realize the various processing requirements of users.
APPLICATIONS
● Furniture: ideally suitable for processing cabinet door, wooden door, solid wood furniture,
panel wood furniture, windows, tables and chairs, etc.
● Other wooden products: stereo box, computer desk, musical instruments, etc.
● Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
APPLICABLE MATERIALS
acrylic,densityboar,wood ,plaster,organicglass,stone,artificialstone,graphite,PVC,EPS, soft metals like aluminum and copper and other non-metal carbon mixed compound,etc.
Technical parameters
SERIES M2-1325 M2-1530 M2-2138 Travelling area 2500*1260*
200/300mm
3100*1570
*200/300mm
3800*2100
*200/300mm
Working area 2480*1240*
180/280mm
3080*1550
*180/280mm
3780*2050
*180/280mm
Table size 2500*1230mm 3100*1560mm 3800*2050mm Optional working length 2850/5000/6000mm Transmission X/Y rack and pinion drive, Z ball screw drive Table structure T-slot Vacuum/T-slot Spindle power 3.5/4.5/6.0KW Spindle speed 18000r/min Travelling speed 25m/min Working speed 15m/min Driving system Stepper/Yaskawa Voltage AC380/3PH/50HZ Controller Hand-Held Controller
